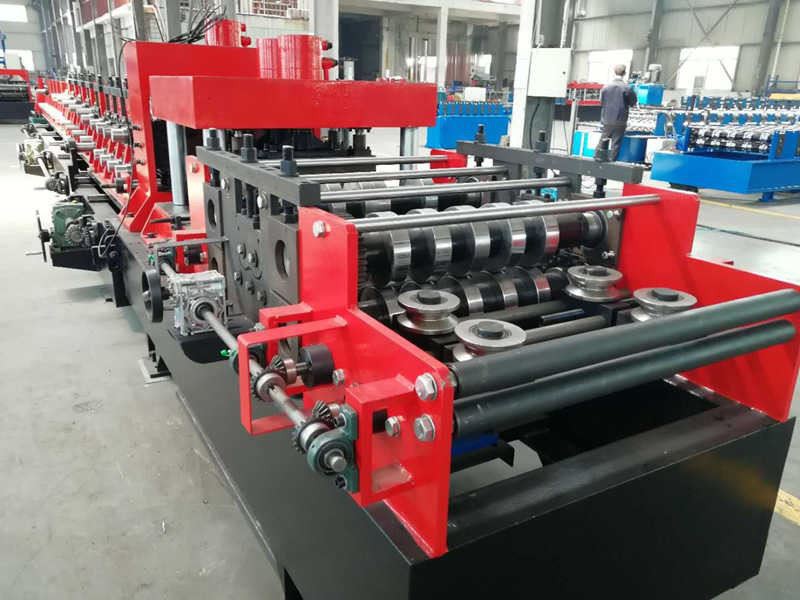

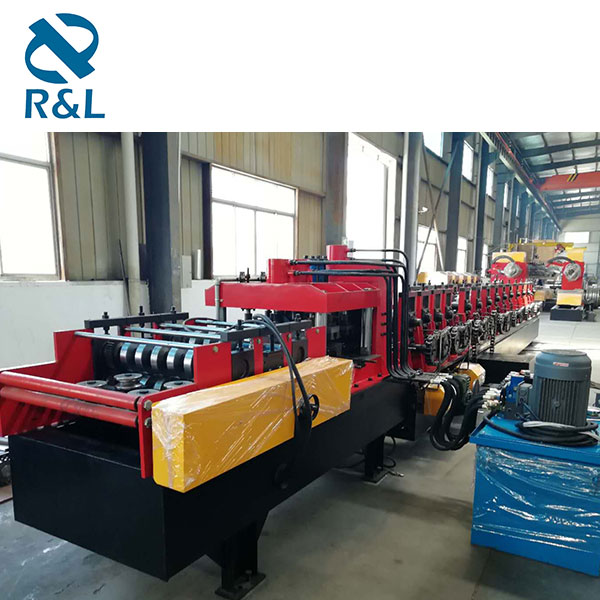

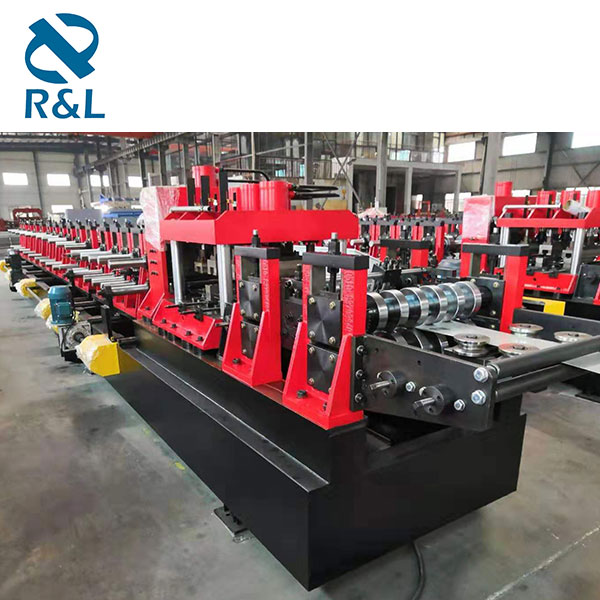

Beam Roll Forming Machine

As a manufacturer, we understand that you are looking for ways to attract new merchants and increase your sales. One effective way to do this is by creating a compelling product introduction that highlights the key features and benefits of your product. In this case, we will focus on the Beam Roll Forming Machine.

The Beam Roll Forming Machine is a highly efficient and reliable machine that is designed to create high-quality beams for a variety of applications. It is an advanced piece of equipment that is designed to help you streamline your production process and save time and money in the long run.

One of the key features of the Beam Roll Forming Machine is its advanced technology. It is equipped with state-of-the-art components and advanced software that allow it to work quickly and efficiently, while also ensuring that the beams it produces are of a high quality.

Another important aspect of the Beam Roll Forming Machine is its versatility. It can be used to produce a wide range of beams, from simple straight beams to complex curved and tapered beams. This makes it an ideal choice for manufacturers who need flexibility and versatility in their production process.

In addition to its advanced technology and versatility, the Beam Roll Forming Machine is also designed for ease of use. It is easy to set up and operate, making it an ideal choice for manufacturers who want to reduce the amount of time and effort required to produce high-quality beams.

One of the most important benefits of the Beam Roll Forming Machine is its ability to save you money in the long run. By streamlining your production process and reducing the amount of time and effort required to produce high-quality beams, you can save money on labor costs and increase your overall profitability.

Finally, the Beam Roll Forming Machine is built to last. It is made from high-quality materials and is designed to withstand the rigors of daily use. This means that you can rely on it to perform consistently and reliably, even under heavy use.

In conclusion, the Beam Roll Forming Machine is an advanced piece of equipment that is designed to help you streamline your production process, save time and money in the long run, and produce high-quality beams for a variety of applications. Its advanced technology, versatility, ease of use, and long-term reliability make it an ideal choice for manufacturers who are looking to improve their production processes and increase their profitability. If you are interested in learning more about the Beam Roll Forming Machine, please contact us today.

Introduction

This Beam Roll Forming Machine can also be called CZ purlin rolling forming machine, which is used to produce C purlin and Z purlin with various sizes and thicknesses. Through the continuous rolling of the rolling die, the machine can form closed or open profiles, which has great applications in manufacturing, commercial buildings, aerospace and other application fields. Moreover, it is convenient to install and debug, simple to operate, and can also be carried to the temporary field for work because of its small body, making it suitable for production in various occasions.

Features

The Beam Roll Forming Machine  is made of high-quality materials and adopts the frame design of pointed steel structure, which makes it reasonable in structure and strong in bearing capacity, and can achieve the effect of stable and reliable operation. Its parts have very high strength and can bear long-term processing without easy deformation or damage, so it can avoid the cost problem caused by frequent maintenance. In addition, it adopts a fully automatic cutting process after processing steel plates or other materials, which can ensure the accurate length and position, and make the section clean and without distortion.

Process

Material Loading --- Feeding (guide the tap steel into the right main roll forming machine) --- Leveling --- Roll forming --- Hydraulic Cutting --- Collection

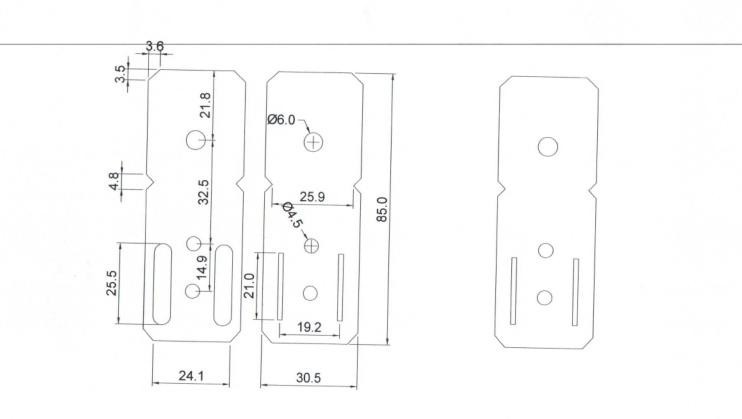

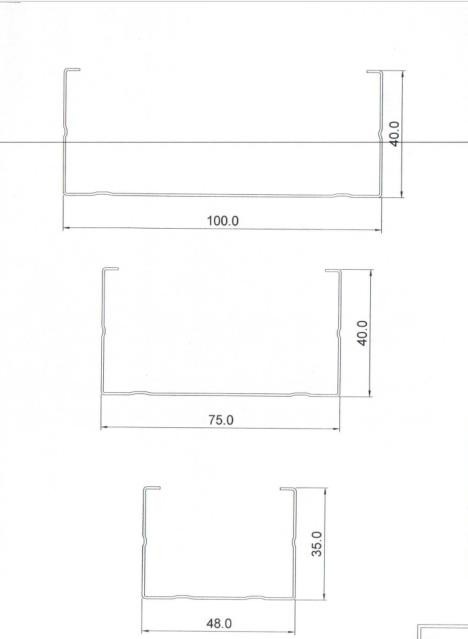

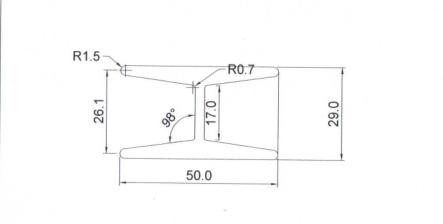

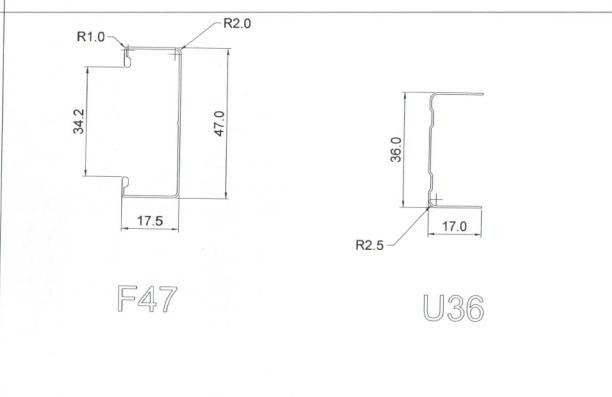

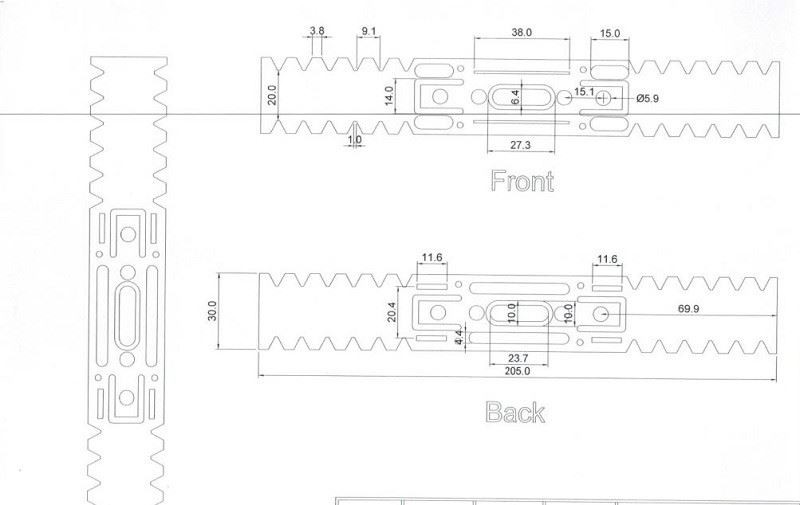

Profile Drawing

1. Structure of the Equipment

1.1 Passive Decolier: 1 set

2. Feeding and Leveling: 1 set

2.1 Feeding into the guided roller (can be adjusted from left to right)

2.2 Go into the feeding roller, the diameter is ￠60mm, 45# steel, quenching to 48°-52°

2.3 Leveling roller: 2 roller upper, and 3 roller down, quenching treated.

3. Punching (can be adjusted from left to right)

3.1 Hydraulic system: 7.5kw

3.2 Oil Pump diameter: ￠120mm

3.3 Working Pressure: 20mpa

3.4 Die Material: Cr12, quenching to 58°to 62°

4. Machine Size: L: 5m; W: 1.1m; H: 1.3m

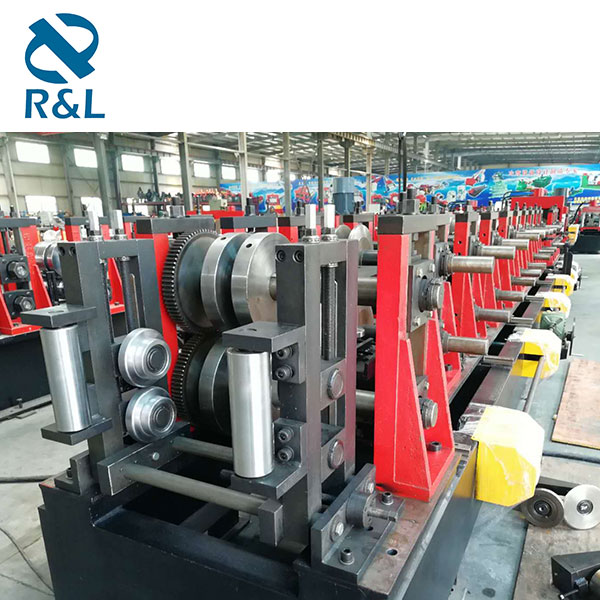

5. Roll forming

5.1 Main Power: 7.5kw

5.2 Original: Changzhou China

5.3 Shaft Diameter: ￠60mm, 45# steel

5.4 Roller Material: GCr15, quenching to 58°to 62°

5.5 Station: 16

5.6 Transducer: Demar (Voltage 390v, 50Hz)

5.7 PLC Control

6. Cutting

6.1 Hydraulic cutting system

6.2 Blade material: Cr12, quenching to 58°to 62°

6.3 Working Pressure: 20mpa

6.4 Working Trip: 80mm

7. Collection Table:

40mm*40mm angel steel, specification: L: 0.8m; W: 0.8m; H: 0.6m

8. Structure of the Equipment

Passive Decoiler, roll forming (including feeding, roll forming, PLC, Hydraulic station, collection table and Manual
