Corrugated Roll Forming Machine

Introducing the Corrugated Roll Forming Machine

As a manufacturer based in China, we are proud to offer the Corrugated Roll Forming Machine to merchants worldwide. This top-of-the-line machine is designed to meet the needs of those in the building, construction and roofing industry. It is versatile, efficient and produces high-quality results. Here are the key features and benefits of our Corrugated Roll Forming Machine.

Efficient Production:

The Corrugated Roll Forming Machine is designed to streamline the production process and increase output. Our machine is equipped with advanced technology and features a high-precision roll forming system. With this technology, our machine can produce up to 25 meters of corrugated panels per minute. So, you can ensure that your production cycles are fast and efficient.

Easy to Operate:

Our machine is user-friendly and easy to operate, with minimal training required. The control panel on the machine is intuitive and easy to navigate, allowing you to set up the Corrugated Roll Forming Machine quickly and easily. It's also equipped with safety features, so you can operate it with confidence.

Versatility:

Our Corrugated Roll Forming Machine is versatile and flexible. It can produce panels of different widths, lengths, and thicknesses. You can also switch between different profiles and shapes with ease. This versatility makes it an excellent investment for businesses that need to produce a range of different products.

High-Quality Results:

When you invest in our Corrugated Roll Forming Machine, you can expect nothing but high-quality results. It is designed to produce panels that are precise, uniform and of the highest quality. Our machine uses high-quality materials, and it is built to last, so you can produce quality panels for years to come.

Low Maintenance:

Our Corrugated Roll Forming Machine requires minimal maintenance, ensuring low running costs. We use high-quality materials in the construction of our machine, making it durable and long-lasting. This means you can focus on your business operations without worrying about costly and time-consuming maintenance.

Conclusion:

Our Corrugated Roll Forming Machine is a top quality investment for merchants worldwide. It is designed to streamline the production process, increase output, and produce high-quality panels. Our machine is versatile, easy to operate, low maintenance, and built to last. We believe this machine is an outstanding investment for any business in the building, construction or roofing industry.

We invite you to consider our Corrugated Roll Forming Machine for your business operations. Contact us today to learn more about our product, pricing and delivery options. We are committed to providing excellent customer service, and we guarantee your satisfaction with our product. Thank you for considering our Corrugated Roll Forming Machine.

Introduction

The Corrugated Roll Forming Machine is a versatile piece of equipment that can be used to produce corrugated metal sheets, ideal for roofing or wall cladding of steel structures, with very reliable quality. This pressed steel became a newly popular material due to its low cost, very quick installation, and good shock resistance, and our equipment received a lot of attention for it. It is mainly composed of a discharging part, forming machine, a hydraulic forming shearing device, and other parts. In addition, our company can also design and manufacture special models of products, and provide technical guidance for users.

Features

1. The Corrugated Roll Forming Machine adopts an advanced PLC control system, which can automatically control the cutting length and the number of cutting pieces of the product with very high accuracy.

2. The forming mold is made of high-hardness quenching material, so it is not easy to deform after long-term use.

3. The 14 forming stations have greatly improved the processing speed, and the operator can easily use the touch screen to complete parameter adjustment.

4. Good compatibility makes it suitable for the forming of stainless steel, color steel, cold-rolled steel, galvanized steel, and other different steel materials.

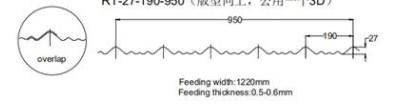

1. Profile Drawing

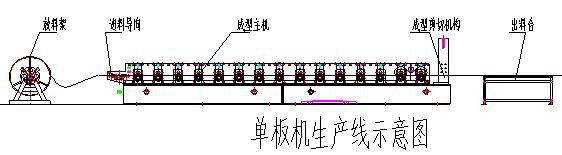

2. Process Drawing

Passive decoiler — Feeding — Roll forming — Cut to length — Collection

3. Technical Information

3.1 Main power: 5.5kw

3.2 Reducer: BWD22-43-5.5KW

3.3 Transmission chain: 25.4 pitch

3.4 Wall frame thickness: 16mm

3.5 Machine size: about 7M*1.4M

3.6 Forming speed: 0-12m/min

3.7 Shaft O.D: φ70mm

3.8 Forming station: About 14

3.9 Blade material: Cr12

3.10 Heat treatment for blade: HRC HRC58-62°

3.11 Rolling thickness: 0.17-0.6mm

3.12 Length: 3m/±1.5mm

3.13 Roller material: 45# steel

4. Electrical Components and Hydraulic

4.1 Inverter: Thinget

4.2 PLC: Thinget

4.3 Operation panel: MCGS

4.4 Low electrical components: Deli

4.5 Encoder: Omron

4.6 Hydraulic station: 3kw

4.7 Oil pump: YBI-10

5. Equipment

Decoiler, roll forming, cutting, PLC, hydraulic station, collection

Componets

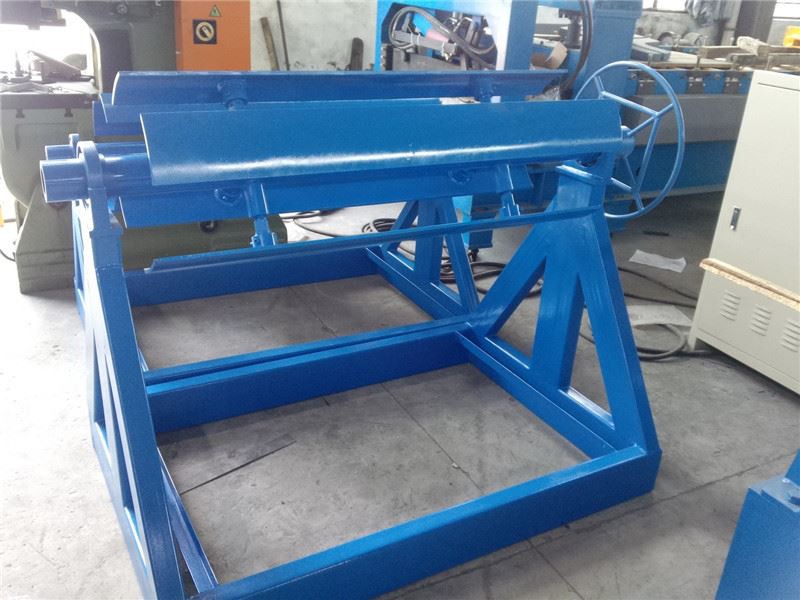

1. Decoiler

Size: 1.5mx1mx1.2m

2. Hydraulic Station & PLC control box

Size of station (red arrow): 1mx0.8mx1m

Size of PLC control box (green arrow): 1.2mx0.8mx1.5m

3. Collection table

Size: 1.5mx0.5mx1m, 3 pcs.

4. Main roll forming

Size: about 8.6m(L)x 1.7m (W) x 1.5m (H)

5. Cutting

Size: 1.7m (H) X 1.2m( L) X 0.5m (W)

Feeding is a part of main roll forming, we have not the size. It is made up of three roller.

Why choose us?

• As a manufacturer, we offer customized solutions to meet our customers’ specific needs.
• We have confidence to locate our company to a pioneer management standard, more competitive and achieve a first-class grading.
• We have a reliable and efficient supply chain, ensuring timely delivery of our products.
• The company continues to develop based on the principle of survival by quality, development by science and technology, and reputation by service.
• We offer a wide range of metal roll forming machines to suit various industries.
• We adhere to market-oriented and technological leadership as the main purpose, and strive to develop new series of Corrugated Roll Forming Machine and expand the market.
• We offer quick and efficient delivery of our products to reduce downtime and increase productivity.
• Over the years we have adhered to the people-oriented philosophy and regard our employees as the most valuable resources and wealth of the company.
• Our goal is to be our customers’ long-term partner and provide continuous support.
• We insist on management innovation, which brings great convenience for us to pursue excellence and maintain competitive advantage.
